About GI Junction Box For Floor Raceway

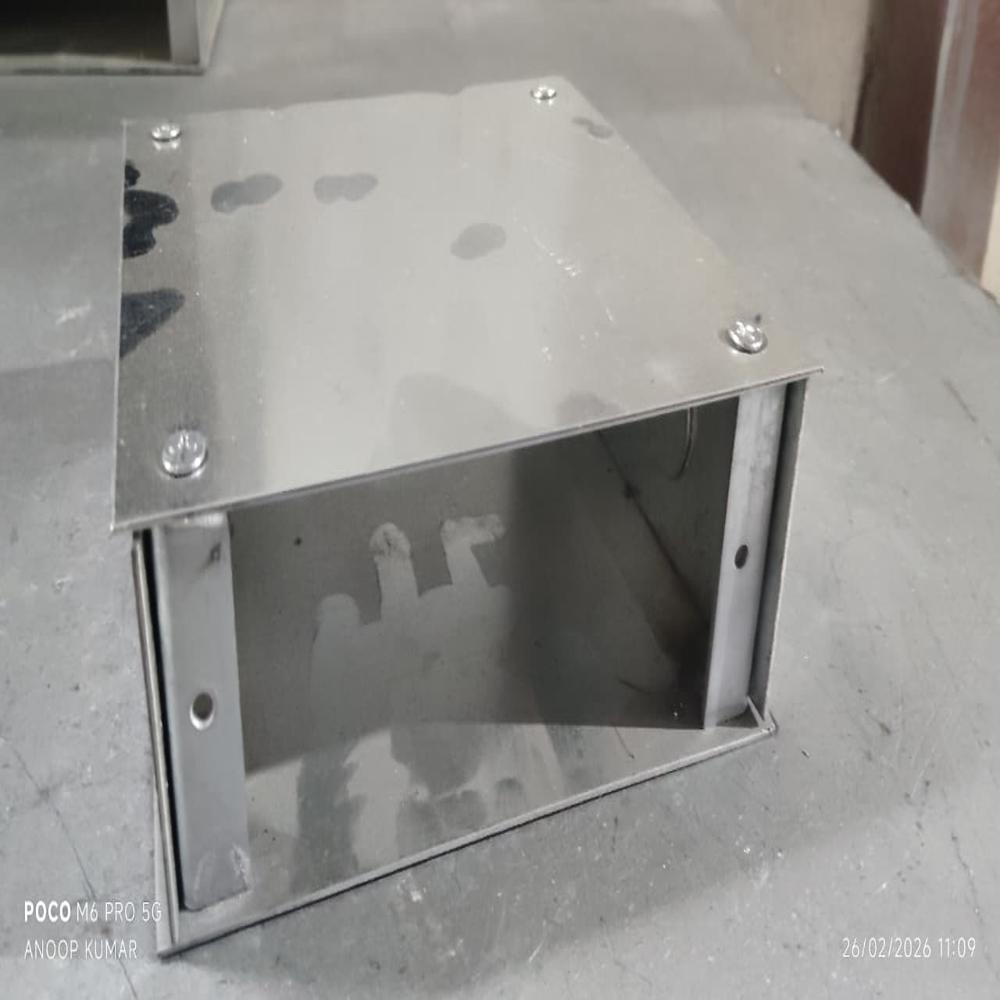

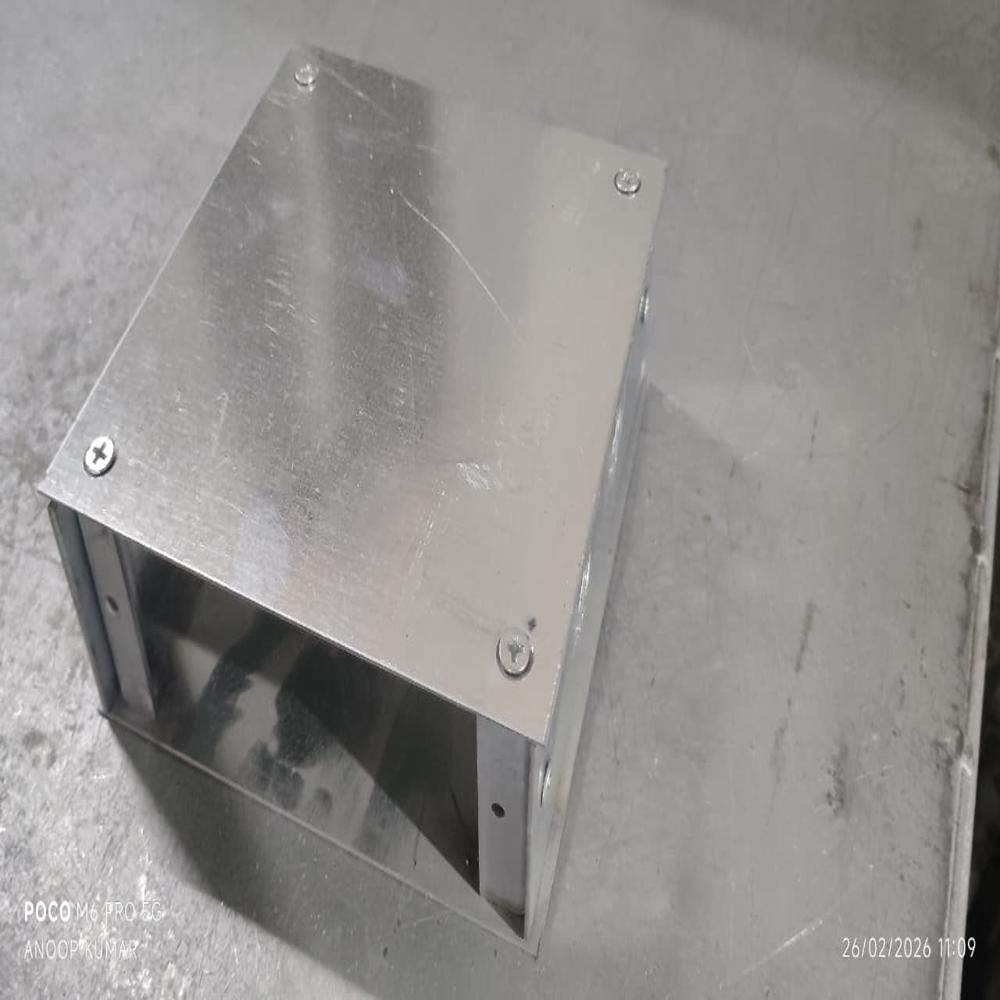

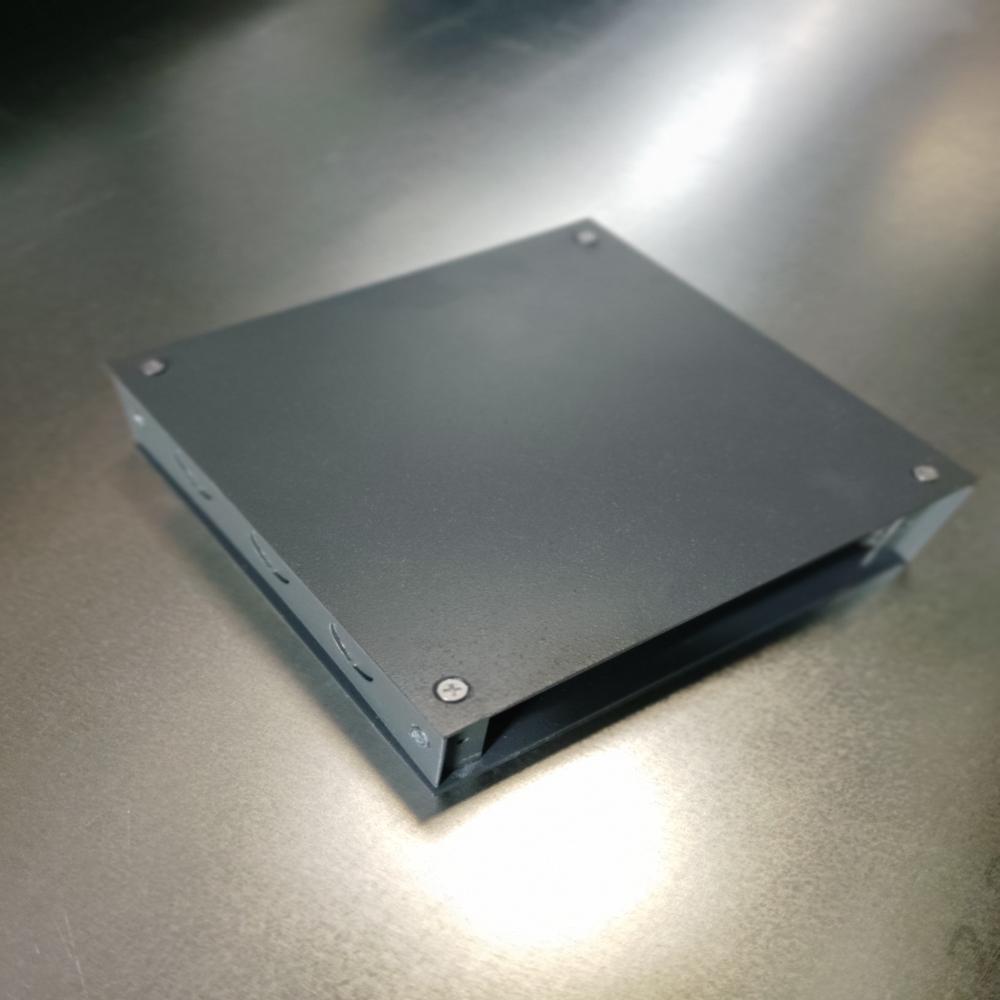

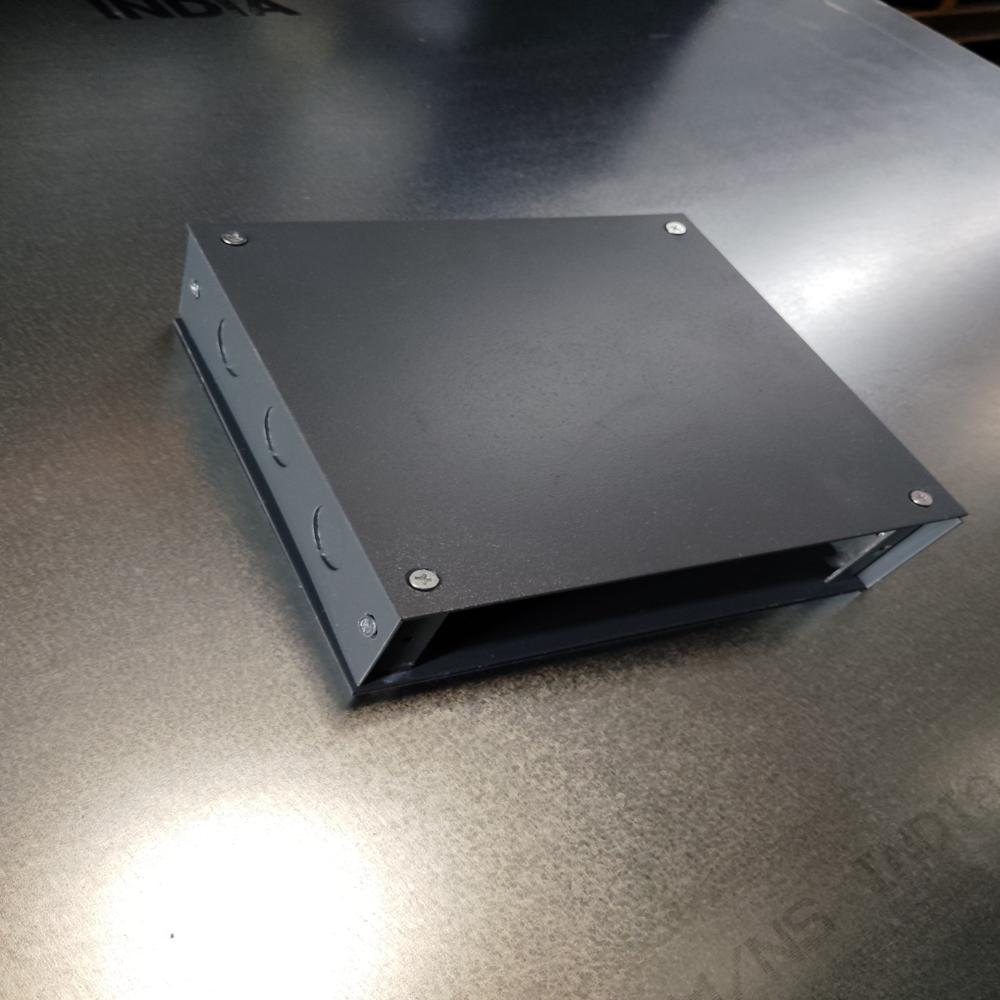

GI Junction Box for Floor Raceway Product Description

Overview

GI Junction Box for Floor Raceway is a robust cable management enclosure manufactured from Galvanized Iron (GI) Sheet conforming to IS 277 standards. It is specially designed for installation within floor raceway systems to facilitate cable routing, branching, distribution, inspection, and maintenance of electrical, data, communication, and control wiring networks.

The junction box serves as an intermediate access point within the floor raceway system, allowing multiple cable routes to intersect, change direction, or terminate safely while maintaining a neat and organized cable infrastructure.

Purpose of GI Junction Box in Floor Raceway

Floor raceway systems are extensively used in commercial buildings, offices, control rooms, conference halls, airports, educational institutions, IT facilities, and industrial establishments where services need to be distributed beneath the floor.

The GI Junction Box is used to:

• Connect multiple raceway sections.
• Facilitate cable branching and distribution.
• Protect cable joints and connections.
• Provide access for inspection and maintenance.
• Allow future cable additions or modifications.
• Maintain organized cable routing within the floor system.

Why Is It Used?

Modern workspaces require extensive cabling for:

• Electrical power supply
• Computer networks
• Data communication
• Telephone systems
• CCTV systems
• Fire alarm systems
• Audio-video systems

Without proper junction boxes, cable joints remain exposed and difficult to access, increasing the risk of damage and maintenance issues.

GI Junction Boxes provide a secure and accessible enclosure that protects cable connections while ensuring easy future expansion and servicing.

Applications

Commercial Buildings

• Office workstations
• Conference rooms
• Business centers

IT & Data Centers

• Network cabling
• Server room connections
• Structured cabling systems

Educational Institutions

• Computer labs
• Smart classrooms
• Administrative offices

Airports & Infrastructure Projects

• Communication systems
• Power distribution networks

Industrial Facilities

• Control systems
• Instrumentation wiring
• Automation networks

Healthcare Facilities

• Data and communication cabling
• Medical equipment power distribution

Key Advantages

1. Superior Cable Protection

Protects electrical and communication cables from mechanical damage, accidental impact, and floor traffic.

2. Corrosion Resistance

Manufactured from IS 277 galvanized steel, offering excellent resistance against rust and corrosion.

3. High Structural Strength

Metal construction provides greater durability and load-bearing capability compared to plastic alternatives.

4. Easy Inspection & Maintenance

Allows convenient access to cable joints and connections for troubleshooting and future modifications.

5. Safe Cable Distribution

Reduces risks associated with exposed wiring and improper cable splicing.

6. Organized Cable Management

Maintains a neat and professional cable routing system within the floor raceway network.

7. Long Service Life

The galvanized coating ensures prolonged durability and reduced maintenance requirements.

8. Fire-Resistant Construction

Metallic enclosure offers improved fire resistance and enhanced safety.

9. Flexible System Expansion

Facilitates future cable additions, rerouting, and system upgrades without major civil work.

10. Cost-Effective Solution

Reduces maintenance costs, cable damage, and downtime while improving system reliability.

Material Specification

Product: GI Junction Box for Floor Raceway

Material: Galvanized Iron Sheet

Standard: IS 277

Finish: Pre-Galvanized / Zinc Coated

Application: Floor Raceway Cable Management Systems

Installation: Flush Floor Mounted / Raceway Integrated

Suitable For: Power, Data, Voice, CCTV, Fire Alarm & Communication Cables

Construction: Fabricated GI Sheet Enclosure with Removable Cover
